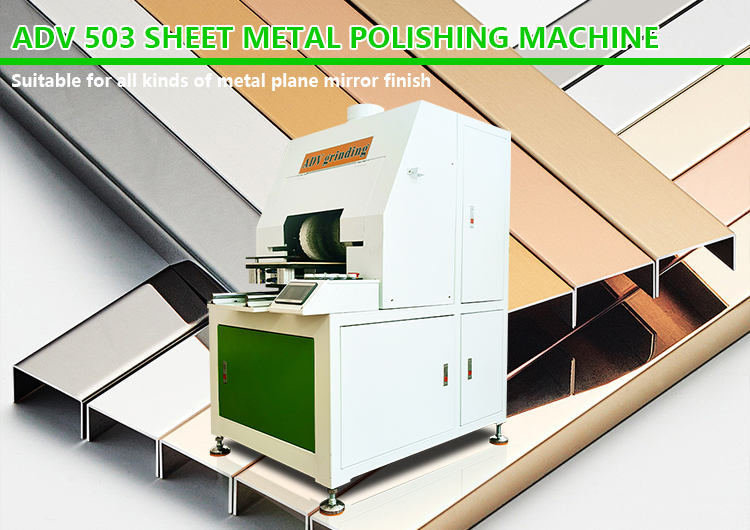

Tips: ADV 503 flat sheet mirror polishing machine
1. This machine is mainly used for grinding and polishing metal plates and flat parts, using sandpaper and buffing wheels for the best finish.
2. The worktable feed speed and swing frequency are adjustable
3. The worktable performs reciprocating motion, and the reciprocation number can be set according to the polishing effect.
4. The reciprocating stroke of the worktable can be adjusted
5. The installation, operation, and maintenance are simple and convenient, move-aided time is short, and low labor intensity
General technical info
Engine motor power: 3 KW*1
Feeding motor power:0.55KW*1
Swing motor power: 0.25KW*1
Voltage and frequency: 380V/50HZ or customized
Spindle speed:1430r/min
Feeding speed:3.5m/min (Frequency control speed)
Swing frequency:72times/min (Frequency control speed)
Work table height:750mm
Available roughness: ≤0.2µm(Through surface friction many times)
Polishing efficiency:0-3 minutes per piece
Size of machine:1300*800*1350mm(L*W*H)
Standard Equipments
Main engine
Equipped with an electric motor to drive the spindle. The spindle can use the sandpaper or buffing wheel, but it can't be used at the same time.
The spindle use the tape to hold the sandpaper and then use the polishing wheel, it need to be changed new spindle
Sturdy frame
Mass produced machine frame, available for delivery within 7 days
Lifting system
This system mainly use for different thickness of workpiece.Thickness can be 1-80mm
Pneumatic system
This system provides source for the air cylinder and controls the movement
Sandpaper spindle
Sandpaper of different grits can be replaced to grind and remove the oxide layer and rust of the metal parts
Buffing wheel spindle
Different wheels can be changed to achieve a brushed finish and mirror polish
What consumables are needed for mirror polishing of different metal materials?
1. Stainless steel
Stainless steel has high hardness and corrosion resistance, so it requires stronger polishing abrasives,
polishing wheels: hemp wheels and cloth wheels,
aluminum oxide polishing paste, chromium oxide polishing paste
2. Aluminum and zinc alloys
Aluminum and zinc are softer and easier to polish, but they are also prone to scratches, so softer polishing abrasives are needed.
Polishing wheels: cotton wheels and felt wheels,
aluminum oxide polishing paste, chromium oxide polishing paste
3. Brass and bronze
These metals are easy to oxidize, and it is necessary to choose suitable polishing materials to avoid surface discoloration
Polishing wheels: cotton wheels, hemp wheels,
chromium oxide polishing paste, iron oxide polishing paste
4. Carbon steel and alloy steel
Carbon steel is harder, so it is necessary to use harder abrasive materials when polishing, and pay attention to prevent rust
Polishing wheels: hemp wheels, nylon wheels,
Polishing pastes aluminum oxide polishing paste, chromium oxide polishing paste
5. Gold, silver and their alloys
Precious metals are soft and easy to polish, but special care should be taken to avoid scratches and discoloration
Polishing wheels: soft cloth wheels, felt wheels
Aluminum oxide polishing paste, chromium oxide polishing paste
For more information, please contact our polishing experts
