Automatic deburring machine for die stamping, precision parts
Deslagging
Deburring
Edge rounding
Oxide removal
Parameter:
Model
ADV 508-RY450
ADV 508-RY630
ADV 508-RY800
ADV 508-RY1100
ADV 508-RY1300
ADV 508-RY1500
Effective processing width (mm)
30-450
30-630
30-800
30-1100
30-1300
30-1500
Processing thickness (mm)
0.5-100
0.5-100
0.5-100
0.5-100
0.5-100
0.5-100
Minimum workpiece size
Magnetic suction 30*30 mm, Vacuum suction 50*50 mm
Abrasive belt linear speed (m/s)
3-15
3-15
3-15
3-15
3-15
3-15
Number of disc brush
3
5
7
11
13
15
Conveying speed (m/s)
0.5-7
0.5-7
0.5-7
0.5-7
0.5-7
0.5-7
Abrasive belt motor power
7.5 kw
15 kw
15 kw
18.5 kw
22 kw
22 kw
Disc brush motor power
1.1 kw*3
1.1 kw*5
1.1 kw*7
1.1 kw*11
1.1 kw*13
1.1 kw*15

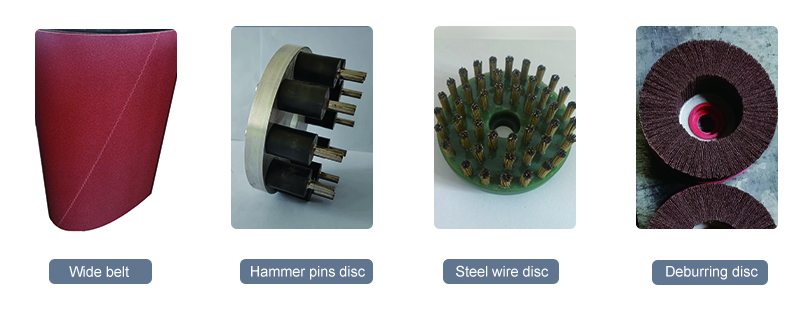

Available abrasives:
Wide belt: deburring large areas at one time for metal parts surface
Hammer pin disc: remove heavy slag and dross from plasma or flame cut sheet metal parts.
Steel wire disc: remove the oxide layer on the cutting surface
Deburring disc: remove minor burrs and edge rounding
Function of ADV 508-RY deburring machine
Remove silhouette edge hard burrs
Remove cutting slag
Edge rounding of outside and inside profile more uniform
Strong adsorptive force, satisfy smaller parts
Automatic compensation for abrasive material
Abrasive replacement remind
Metal removal oxide layer and surface uniform random lines effect

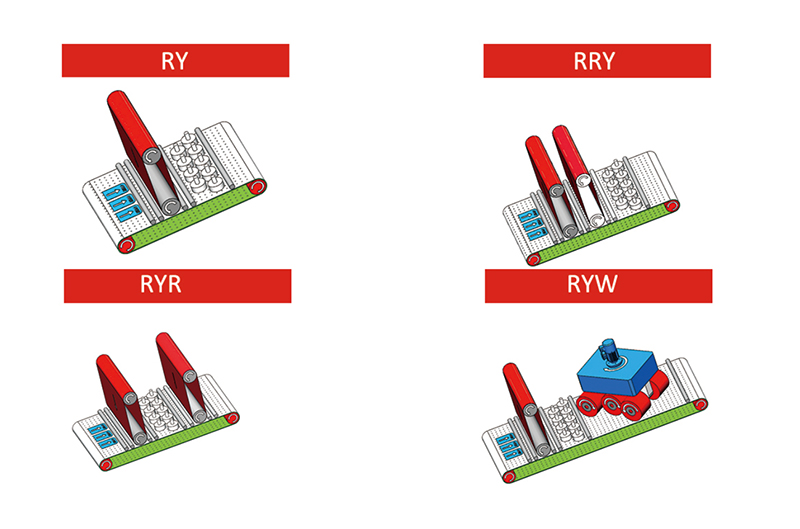

Available model:
RY series is a precision deburring machine for automotive parts, stamping parts, and machined parts. It uses a combination of abrasive belt and disc brushes to maintain the original dimensional accuracy of the workpieces and obtain uniform grinding effect and edge rounding
