Introduction

In the world of metal fabrication, achieving the perfect finish goes beyond just the primary surface. The edges of metal plates and components play a crucial, often understated role in safety, aesthetics, functionality, and the success of downstream processes.

Metal plate edge rounding is the deliberate process of smoothing and shaping the sharp corners and edges of cut or machined metal parts. This fundamental step is vital across diverse industries – from automotive and aerospace to construction, consumer goods, and medical equipment manufacturing. Ignoring edge quality can lead to safety hazards, poor aesthetics, coating failures, and reduced product lifespan.

What Is Edge Rounding?

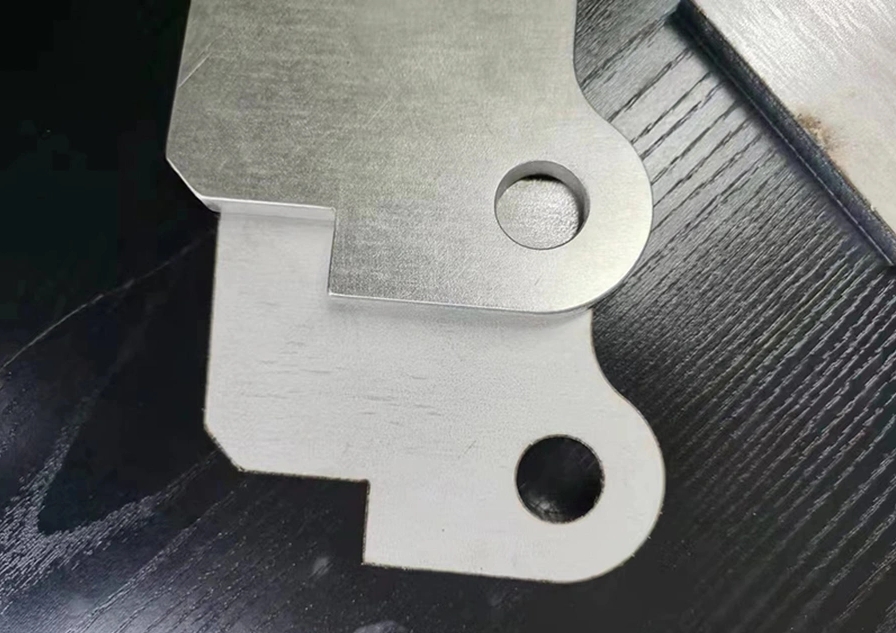

Edge rounding is the controlled process of removing the sharp, potentially dangerous 90-degree angle from the perimeter of a metal plate or component, replacing it with a smooth, consistent curved profile (the edge radius). Its primary purposes are:

Methods of Edge Rounding

Several techniques achieve edge rounding, chosen based on material, thickness, required precision, volume, and desired radius:

1. Manual Methods: Using hand files, abrasive stones, or sandpaper. Suitable for very low volume or prototyping but labor-intensive and inconsistent.

2. Grinding: Utilizing bench grinders, angle grinders, or specialized edge grinding machines. Offers good control but requires skill to avoid overheating or creating an uneven radius.

3. Machining: Employing milling machines or chamfering tools to create a precise bevel or radius. Highly accurate but can be slower and more expensive.

4. Deburring/Edge Rounding Machines: Dedicated equipment like abrasive belt machines, brush deburring machines, or robotic cells designed specifically for consistent, high-volume edge rounding and deburring. Often the most efficient and repeatable solution for production environments.

5. Thermal Methods: Processes like laser deburring can melt micro-burrs and slightly round edges, though less controllable for specific radii.

6. Abrasive Flow Machining (AFM): Forces abrasive media through edges to deburr and round them uniformly, excellent for complex internal passages.

Core Benefits of Edge Rounding

Investing in proper edge rounding delivers significant advantages:

1. Enhanced Safety: The most critical benefit. Eliminating sharp edges drastically reduces the risk of lacerations for anyone handling the metal parts, improving workplace safety and reducing liability.

2. Superior Aesthetics & Professional Finish: Rounded edges convey quality and attention to detail. Parts look finished, refined, and ready for market, enhancing brand perception.

3. Improved Coating & Finishing Adhesion: Sharp edges are problematic for coatings. Rounding creates a continuous surface, allowing coatings (paint, powder, plating) to flow evenly and adhere properly, preventing premature failure at the edges.

4. Reduced Stress Concentration: Sharp corners act as stress risers, points where cracks are more likely to initiate under load or vibration. Rounding distributes stress more evenly, improving part durability and fatigue life.

5. Better Functionality: Rounded edges allow parts to fit together more smoothly, reduce wear on mating surfaces, and prevent snagging of wires, hoses, or fabrics.

Metal Deburring: The Essential Companion

Edge rounding and metal deburring are closely related but distinct processes, often performed simultaneously or sequentially:

Why Deburring Matters for Edge Rounding

1. Foundation for Rounding: Attempting to round an edge covered in large burrs is inefficient and inconsistent. Deburring removes these major imperfections first.




2. Achieving True Uniformity: Even after initial deburring, microscopic burrs or a slightly jagged profile might remain. The edge rounding process further refines this to achieve the desired smooth, continuous radius. Effective deburring is crucial before final edge rounding to ensure a truly smooth and uniform result.

Typical Edge Radius Requirements for Coating Processes

The required edge radius isn't arbitrary; it's often dictated by the subsequent coating or finishing process. Sharp edges are the enemy of durable coatings. Here's why and what's typically needed:

The Problem with Sharp Edges

Surface tension causes liquid coatings (paints, primers, electroplating baths) to pull away from sharp corners, resulting in thin coverage or "edge pull-back." Powder coatings struggle to adhere electrostatically and wrap effectively around sharp angles. This leads to:

1. Reduced corrosion protection at edges

2. Premature chipping and peeling

3. Unsightly visual defects

Edge Radius Specifications by Coating Type

Precision Matters: Consistently achieving the specified radius across all edges is crucial. Inconsistent rounding leads to inconsistent coating performance. Specialized edge rounding equipment offers the highest level of control and repeatability.

Conclusion

Metal plate edge rounding is far more than just a cosmetic touch-up; it's a fundamental process impacting safety, quality, functionality, and the longevity of the final product. By eliminating hazardous sharp edges, enhancing aesthetics, reducing stress points, and critically preparing surfaces for successful coating adhesion, edge rounding delivers substantial value. Understanding the interplay between deburring and edge rounding is key to achieving a truly high-quality finish.

When specifying requirements for your next metal fabrication project, don't overlook the edges. Consider the intended coating process and ensure clear specifications for the necessary edge radius are communicated to your fabrication partner. Investing in precise and consistent edge rounding, often facilitated by dedicated deburring and edge rounding equipment, will yield safer, better-looking, more durable, and higher-performing metal components.
