CNC grinding machine for filter
Available diameter 300-1500mm.
It can grind and polish the filter or tank same time for internal and external.

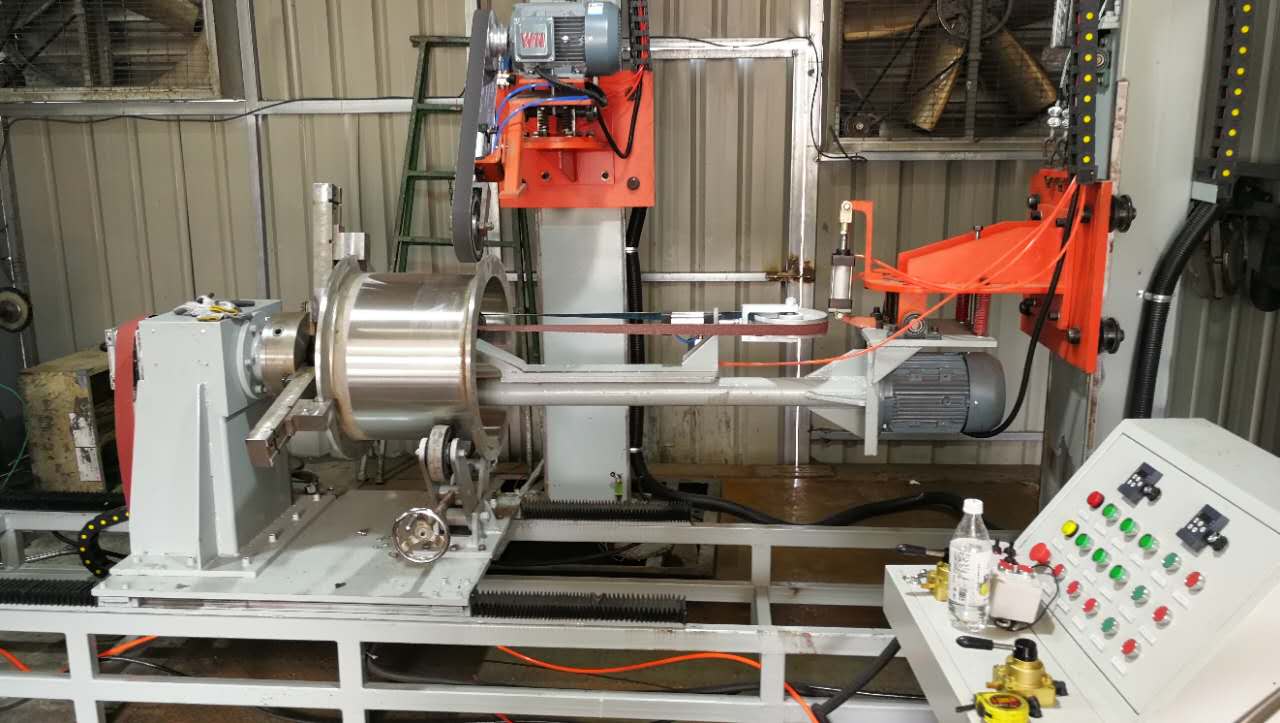

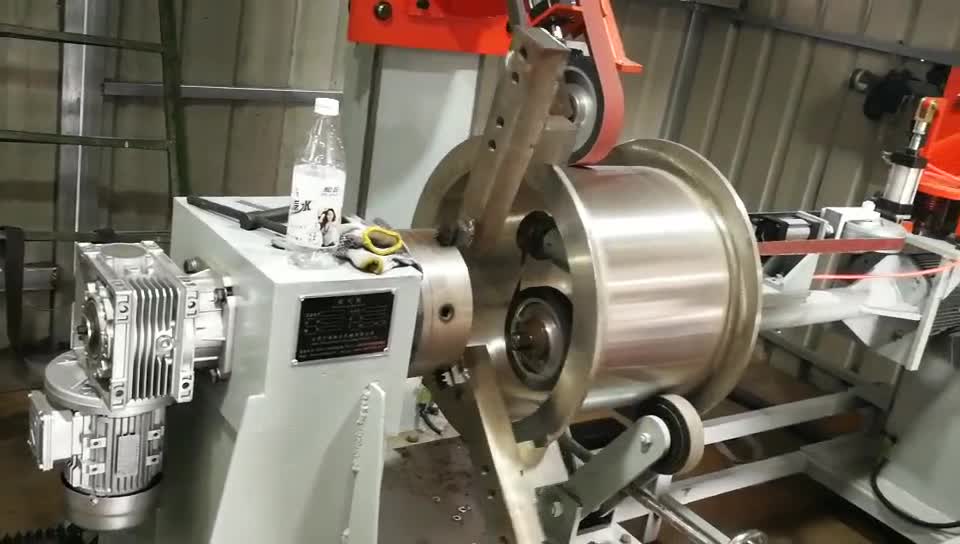

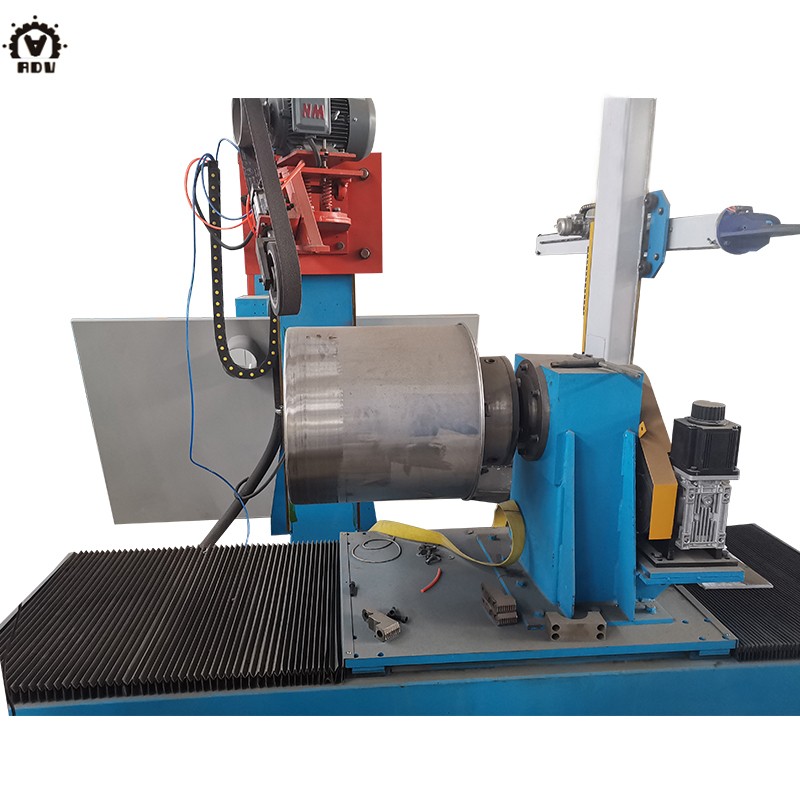

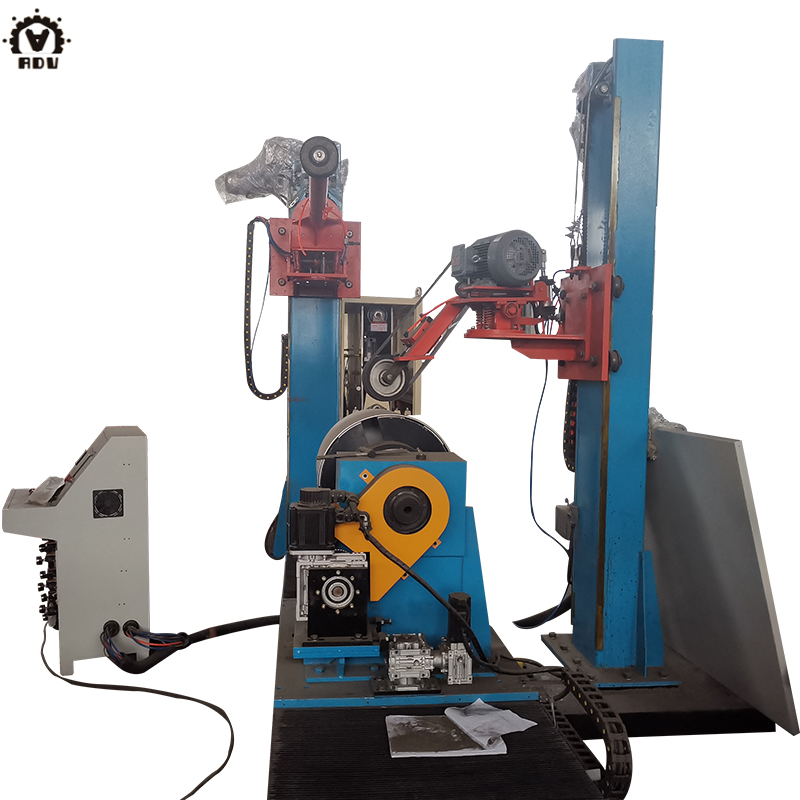

CNC grinding machine for filter photos
The machine is designed for tank external and internal grinding and polishing. It has VFD control, PLC control, and CNC control according to your different requirements on productivities. The available standard diameter for the tank is 219mm-3000mm or customized. CNC cylinder polishing machine is widely used in medical area，chemical，environmental purification，food，beverage and water filter，etc.
| Product name | ADV 708 cnc cylindrical polishing grinding machine |
| Application | cylinder internal and external polishing |
| Buffing wheel motor power | 4-11kw(speed controllable） |
| Polishing wheel dimensions(D*W) | 200*50mm（customizable） |
| Abrasive belt dimensions(L*W) | 1880*50mm/2100*100mm |
| Belt grit | 20#-3000# |
| Machining workpiece diameter range | 219mm-3000mm |
| Accessories | Abrasive belt，buffing wheel（mirror） |
| Machine weight | 3000kg |
