The machine is mainly composed of two sets of grinding heads, one set of
grinding head lifting system, one set of grinding head horizontal feed system,
one set of grinding head displacement rotating system, two sets of grinding
head floating system, one set of workpiece rotating system, and one set of
workpiece pneumatic three-jaw chuck fixture, 1 set of vacuum suction fixture,
1 set of rack system, 1 set of sealed cover system, 1
set of pneumatic system, 1 set of electrical control system, 1 set of automatic
waxing system , 1 set of dust removal system.
Applications of CNC grinding machine
For grinding dishes end, manhole, pot and other round shape products.
CNC grinding machine data sheet

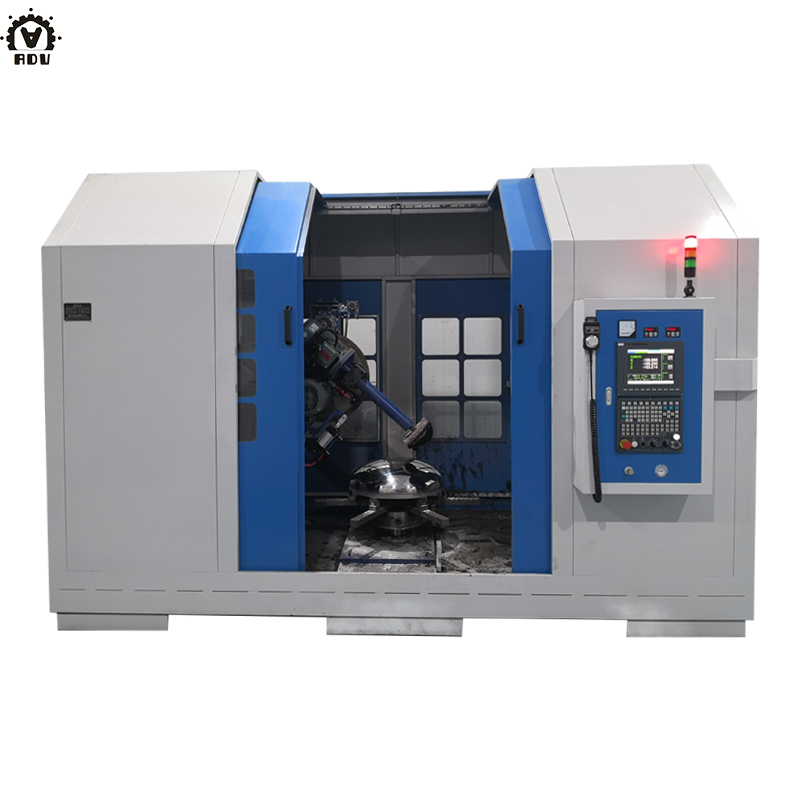

CNC grinding machine overlook
After clamping the workpiece on the turntable (the small dish head can also be vacuum sucked). According to the programmed procedures,One-click start, the workpiece rotates, The grinding head starts from the origin position, does the lifting movement, horizontal movement and displacement movement, and automatically grinds and polishes the surface of the head.
Details Images
The machine is designed for dished head external and internal grinding and polishing. It has VFD control, PLC control, and CNC control according to your different requirements on productivities. The available standard diameter for the dish end is 300-3000mm or customized. CNC dish head polishing machine is widely used in the medical area, chemical, environmental purification, food, beverage and water filter, etc.

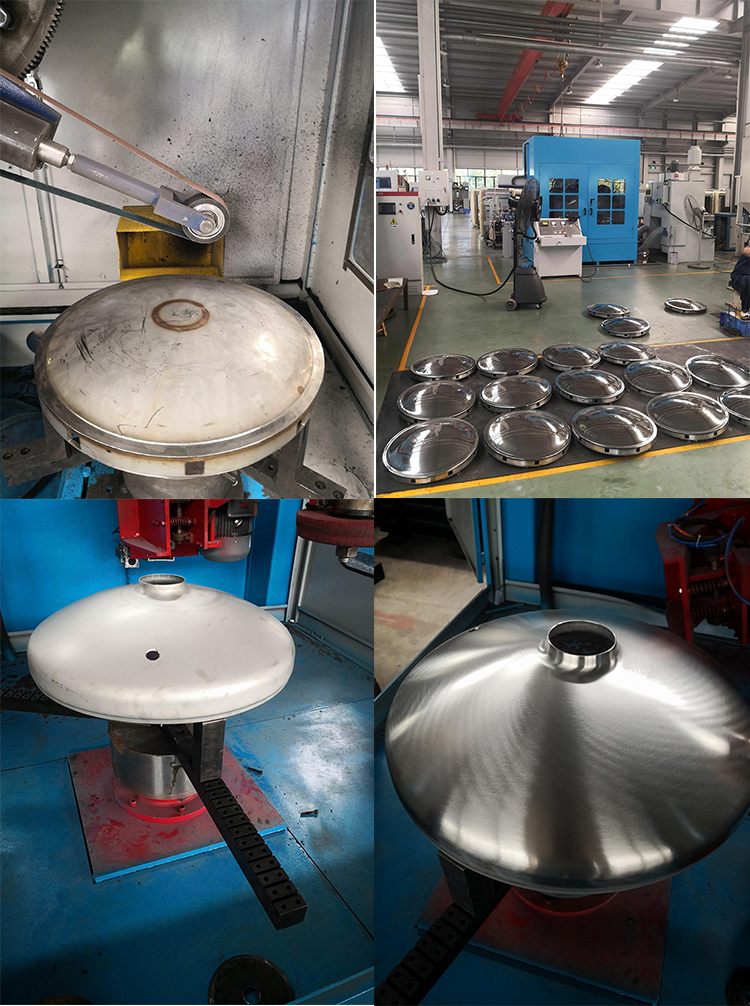

Machine working：

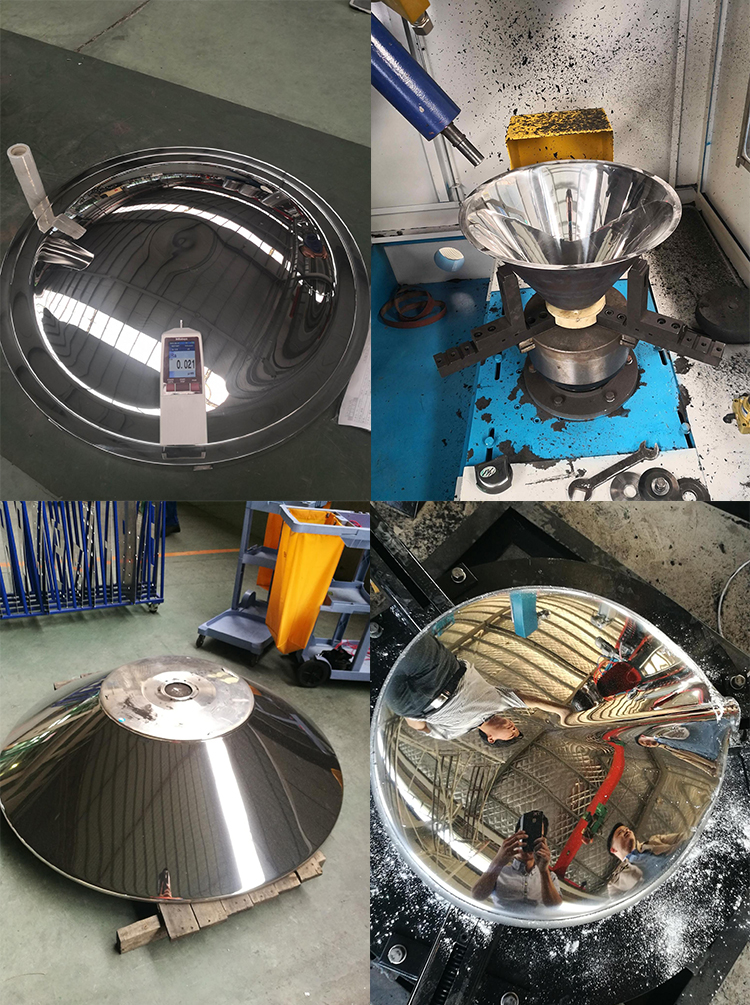

Finishing product：
Applications:
The machine is mainly used for chemical, food, biological, water treatment, pharmaceutical, dyeing and finishing, pressure vessels and other fields:
1. Food, chemical stainless steel tank body
2. medical disinfection cabinet, filter
3. all kinds of cars with cylinder head and head
4. a variety of large-scale transmission pipe end of the tube, outside the weld
5. nuclear reactor and similar high-pressure heavy-duty container, the outer surface of grinding and polishing
6.nuclear reactor and similar high-pressure heavy-duty container, the outer longitudinal, ring weld grinding and welding root cleaning.
