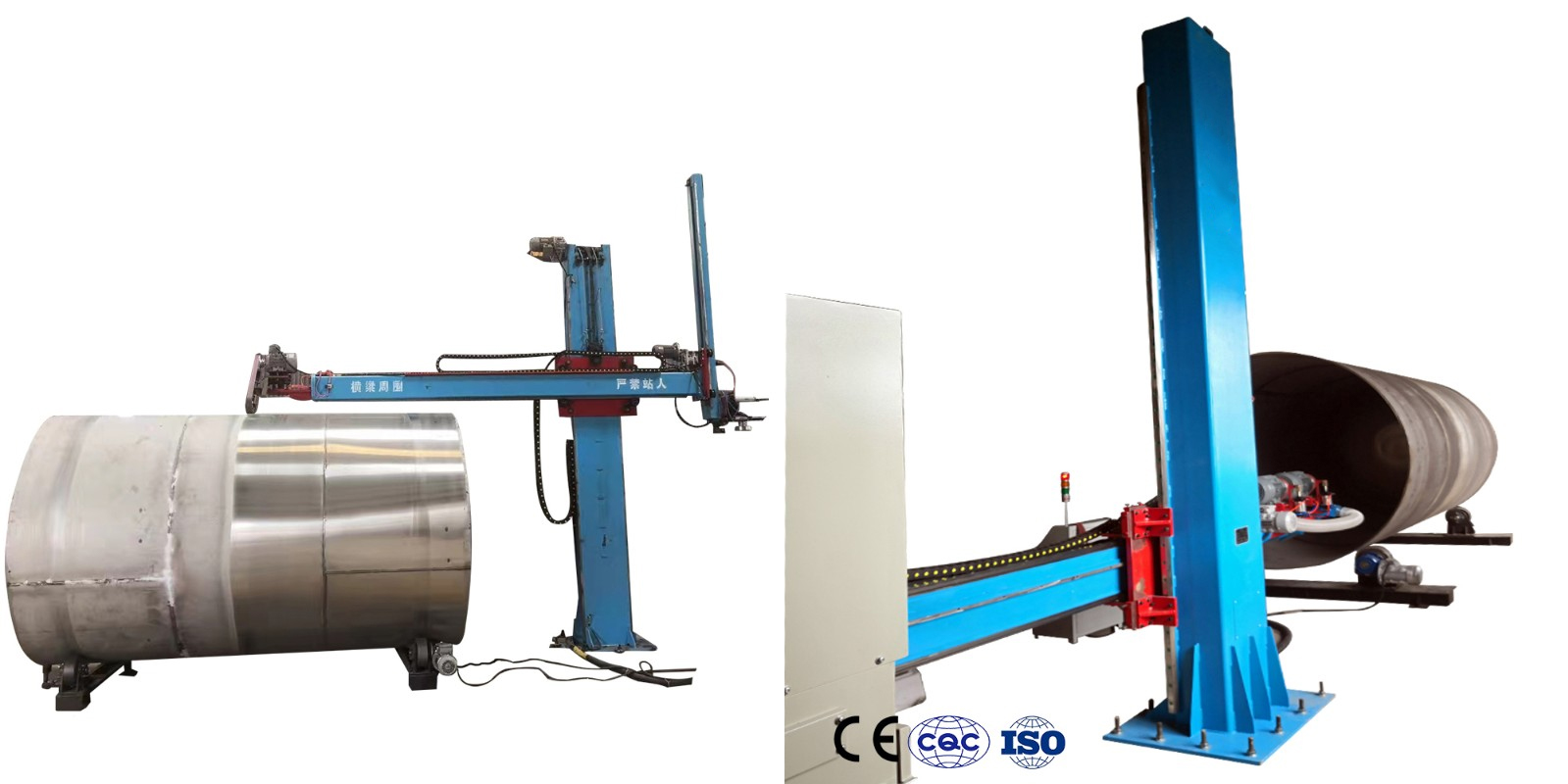

Description of tank polishing machine
The machine is designed for tank external and internal grinding and polishing. It has VFD control, PLC control, and CNC control according to your different requirements on productivities. The available standard diameter for the tank is 300-3000mm or customized.
Specification of tank polishing machine
Polishing Motor power: 5.5kw ;
Belt size: 1880 × 50mm
Buffing wheel size:300*50*32mm
Speed: 1-50rpm, variable-frequency drive

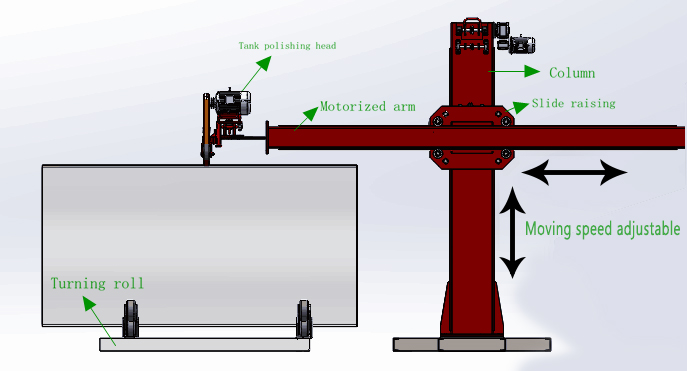

The automatic stainless steel tank and dished head polishing buffing machine

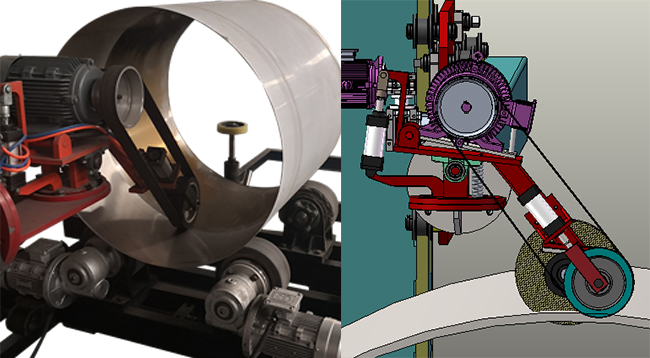

Dish head polishing head:
1. The dish head polishing head can polish and grind the inside and outside the tank.
2. According to the grinding and polishing requirements of the workpiece, the grinding head can be equipped with an abrasive belt or a buffing wheel.
3.Adaptive constant floating structure, can be adapted to the workpiece ovality ≤50mm.
There are two floating cylinders at the grinding head end (one polishing floating cylinders and other belt tensioning cylinder)
Product Description
The machine is designed for tank external and internal grinding and polishing. It has VFD control, PLC control, and CNC control according to your different requirements on productivities. The available standard diameter for the tank is 220-3200mm or customized.

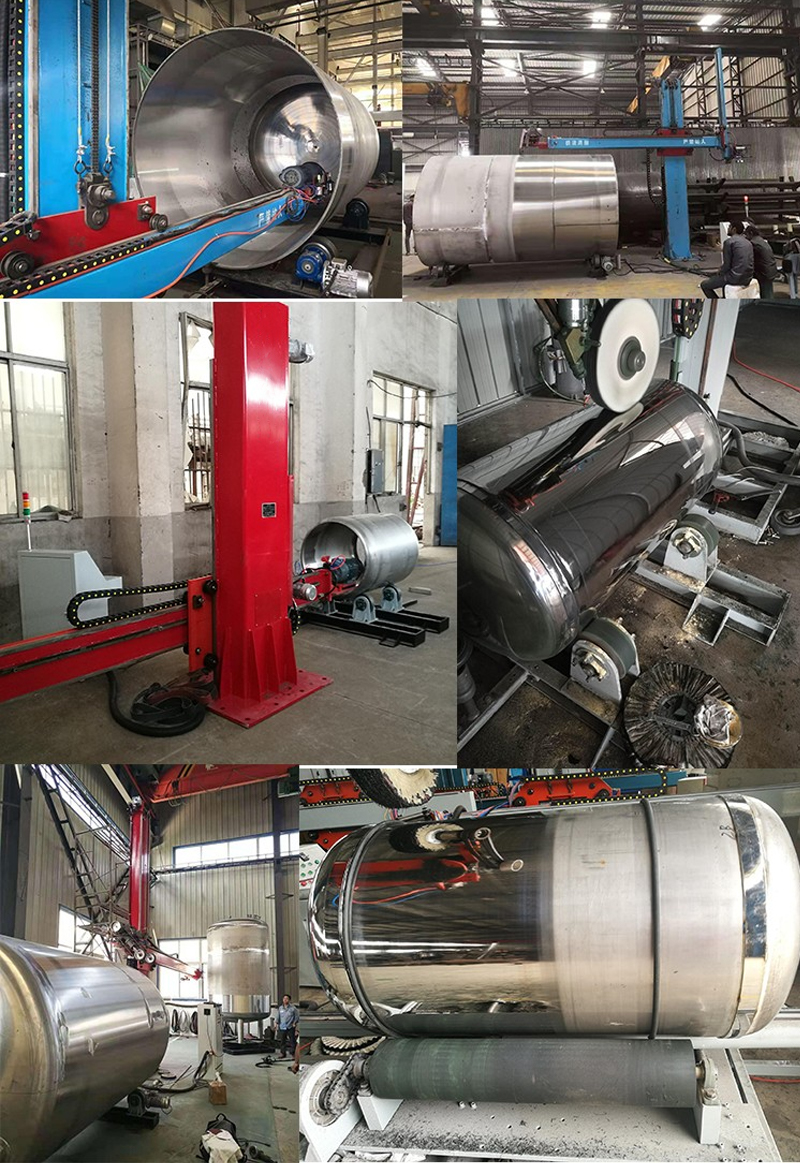

Machine working:

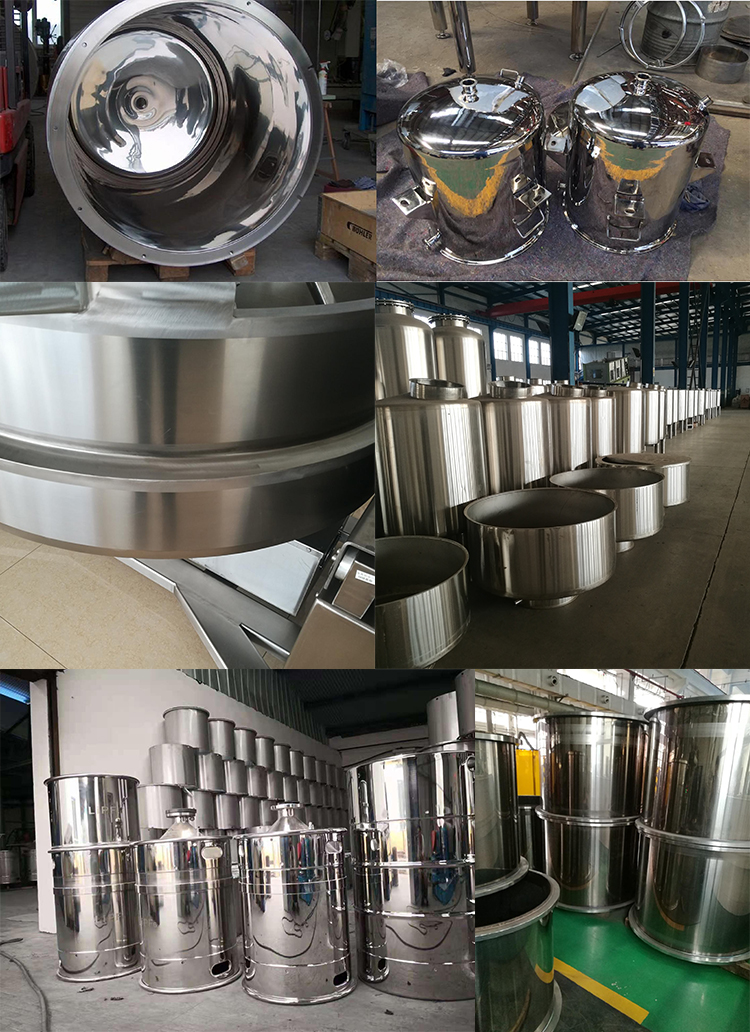

Finished products:(hairline or mirror finishing)
Applications:
The machine is mainly used for chemical, food, biological, water treatment, pharmaceutical, dyeing and finishing, pressure vessels and other fields:
1. Food, chemical stainless steel tank body
2. medical disinfection cabinet, filter
3. all kinds of cars with cylinder head and head
4. a variety of large-scale transmission pipe end of the tube, outside the weld
5. nuclear reactor and similar high-pressure heavy-duty container, the outer surface of grinding and polishing 6.nuclear reactor and similar high-pressure heavy-duty container, the outer longitudinal, ring weld grinding and welding root cleaning
