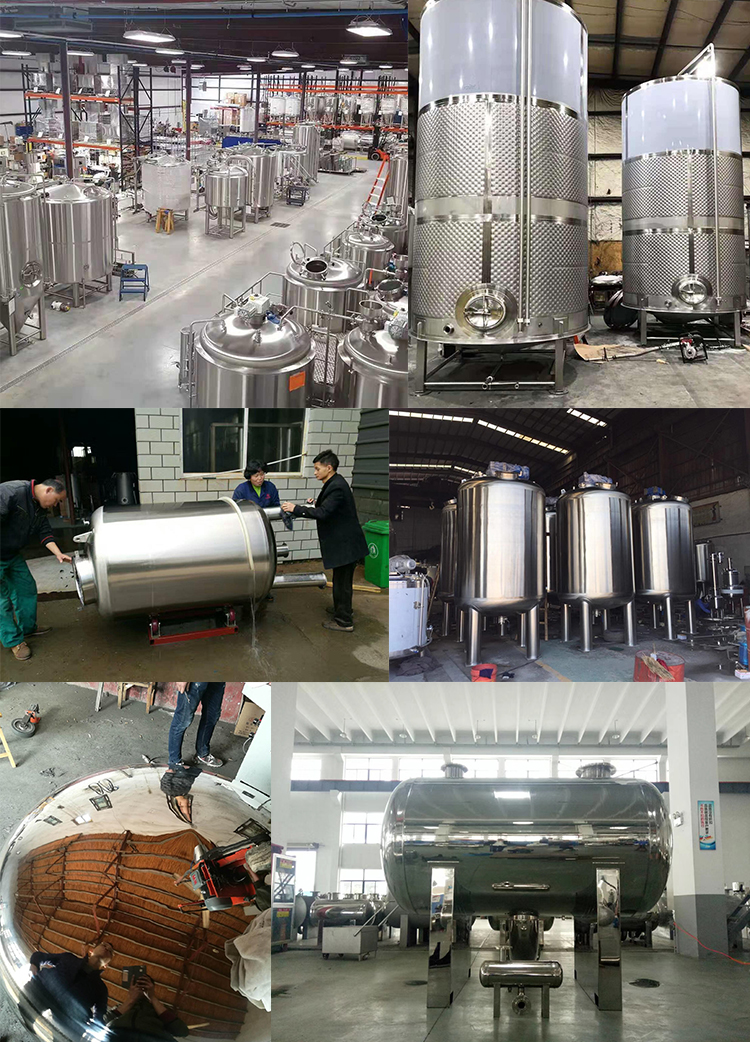

Shell & dish end grinding machine mirror finish photos：
Specifications：
| Product name | ADV-403 Tank and dish end polishing grinding machine
|
| Workpiece diameter range | 220-3200 mm |
| Workpiece length range | <3000mm |
| Workpiece Max weight | <1T for dish，5T for tank |
| Workpiece thickness range | 3-20 mm |
| Buffing wheel motor power | 4-11 kw(speed controllable） |
| Abrasive belt size | 1880*50mm/2100*100mm |
| Abrasive belt line speed | 0-30m/s |
Machine dimensions(L*W*H)
| 5500*1600*2900mm |
| Machine weight | 3000kg |
| Polishing material | Abrasive belt, Flap wheel, hemp wheel, cloth wheel |

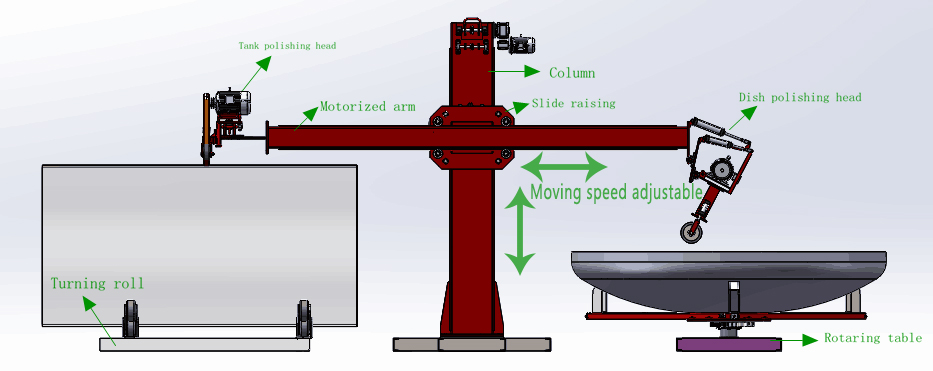

Product Description

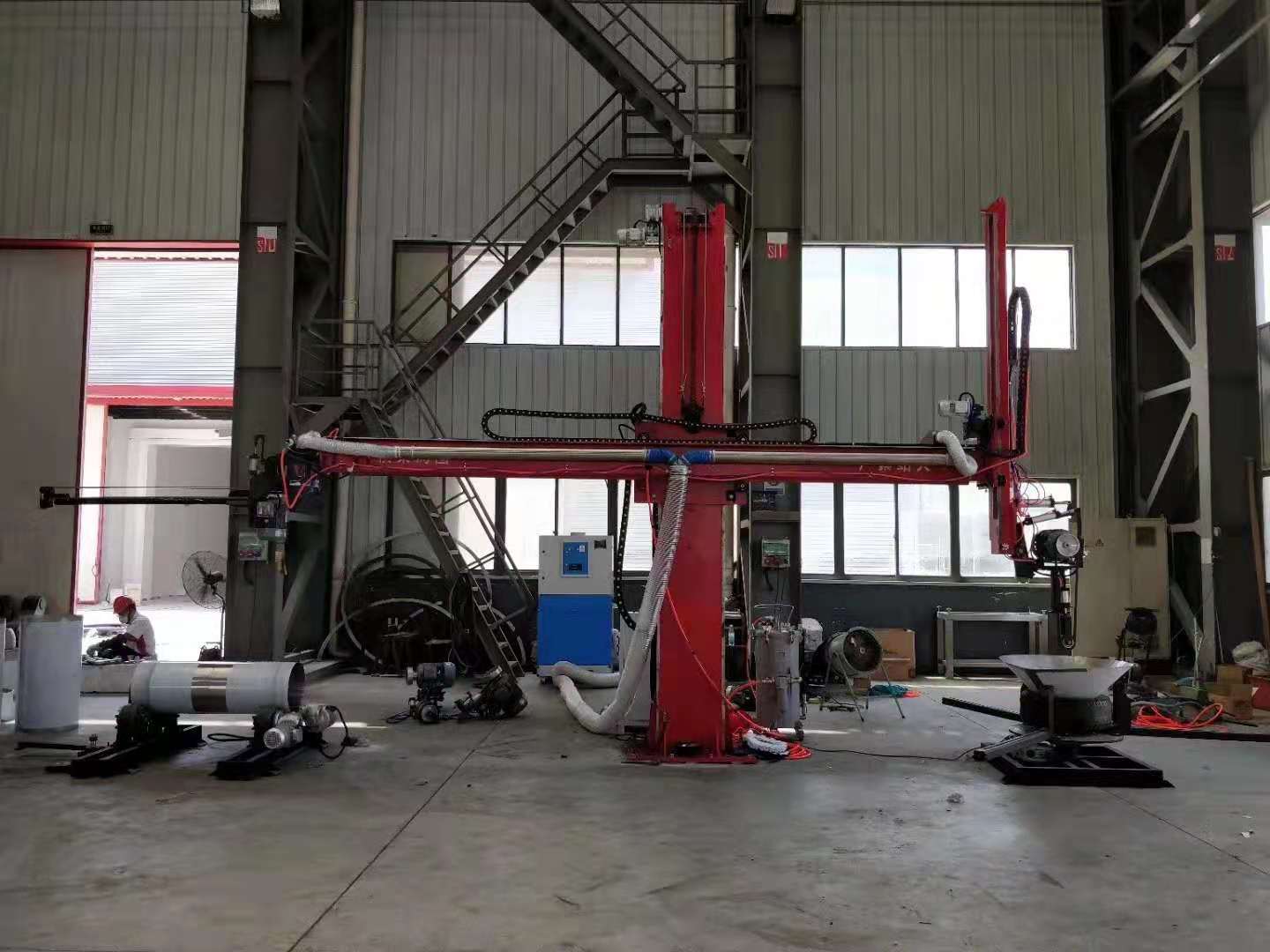

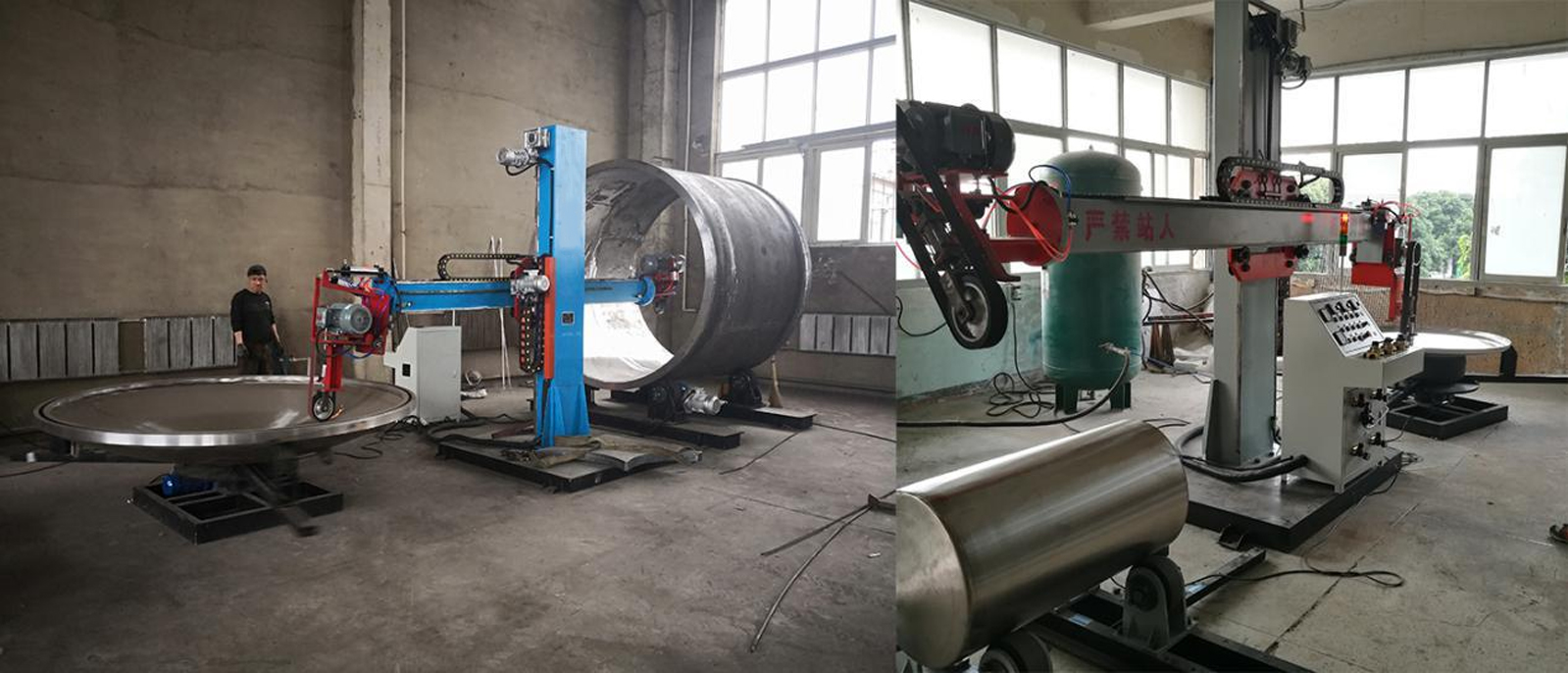

The machine is designed for tank and dish end external and internal grinding and polishing. It has VFD control, PLC control, and CNC control according to your different requirements on productivities. The available standard diameter for the tank is 220-3200mm or customized.
Finished products:
Applications:
The machine is mainly used for chemical, food, biological, water treatment, pharmaceutical, dyeing and finishing, pressure vessels and other fields:
1. Food, chemical stainless steel tank body
2. medical disinfection cabinet, filter
3. all kinds of cars with cylinder head and head
4. a variety of large-scale transmission pipe end of the tube, outside the weld
5. nuclear reactor and similar high-pressure heavy-duty container, the outer surface of grinding and polishing 6.nuclear reactor and similar high-pressure heavy-duty container, the outer longitudinal, ring weld grinding and welding root cleaning
